Description

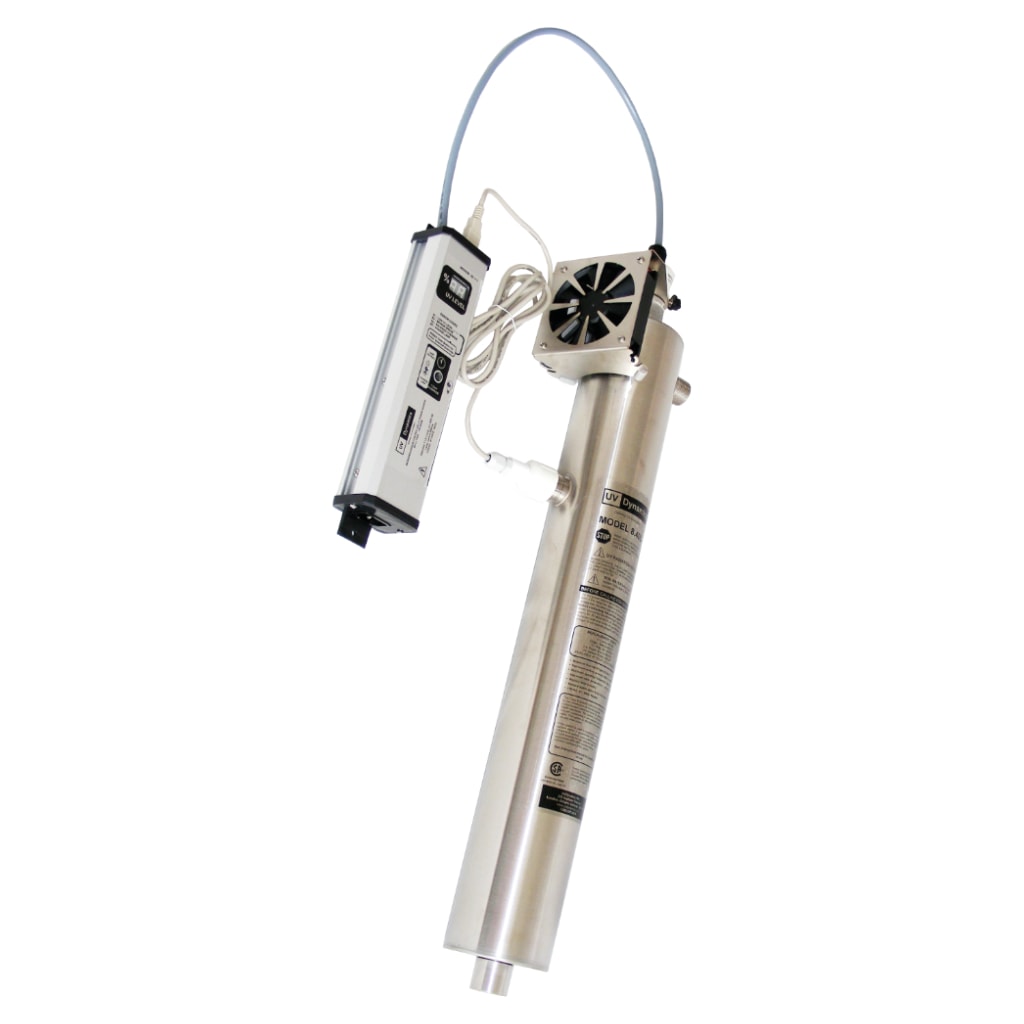

With flow rates ranging from 8 to 20 gallons per minute, the NSF 55 certified series is suitable for use in homes and cottages as well as small commercial and industrial installations.
This product uses a proprietary extended cold spot lamp design along with an active temperature controlled cold spot cooling fan, resulting in improved lamp output maintenance during stagnant hot water conditions.
The microprocessor controlled UV power source has both audio and visual alarm indicators to validate lamp operation and an integral annual lamp change reminder timer.
The UV display indicates actual dose in mj/cm2 at rated flow.
Feature
- Dynamic Flow Regulator
- Isolated Solenoid Drive
- Cold Spot Fan™
- Lamp up to 112 watts
- AC Supply Voltage up to 240V 47-63Hz
- Annual Lamp Change Timer
- Lamp Change Grace Period 28 days
- Reactor Chamber Material 304SS
- Maximum Operating Pressure 100psi (6.9bar)
- Lamp Service Life 9000hrs
- Water Temperature Range 4 – 25C (40 – 77F)
- Inlet/Outlet 3/4″ or 1″d
Note: Replacement lamps and sleeves are available for all models. Contact us for more information.
Options
ULTIMATE SERIES ULTRAVIOLET POWER SOURCE/INTENSITY MONITORThe Excalibur Water Systems Ultimate Series ultraviolet power sources with integrated ultraviolet intensity detection can be used with all single lamp Excalibur Ultimate Series water disinfection products.ADVANCED ULTRAVIOLET DETECTION SYSTEMThis detection system was designed to minimize nuisance alarms that have plagued many of the earlier attempts by other manufactures to implement electronic ballasts with ultraviolet intensity monitors.TWO DIGIT ULTRAVIOLET LEVEL DISPLAYAs well as indicating the ultraviolet intensity level in percent, the display will indicate the number of months of lamp life remaining when the timer button is depressed. The display indicates a discrete error code if there is a malfunction of the power source or detector system to aid with diagnostics and resolution of any performance issues.
