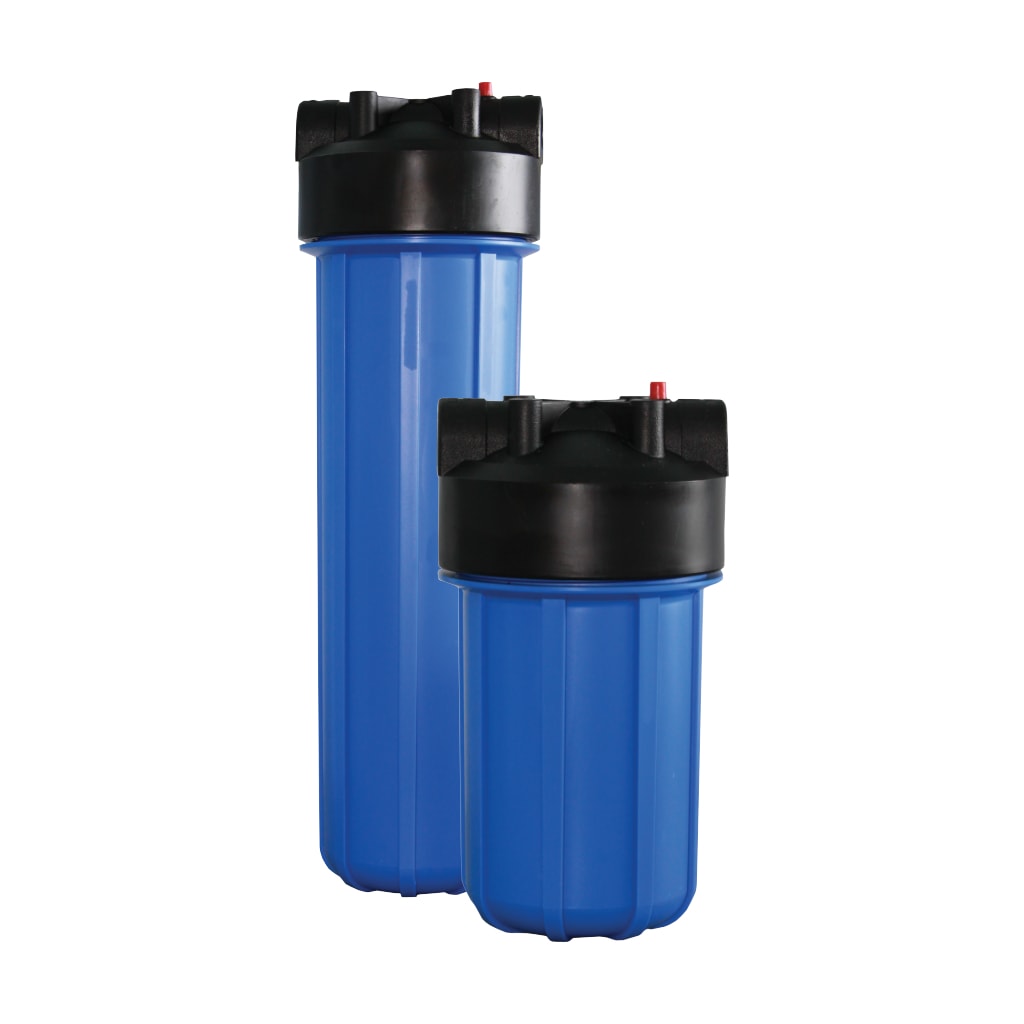

Jumbo Filter Housings
Jumbo filter housings for large capacity filtration requirements, including high flow. Applications: Municipal Water, Well Water, Lake Water
Description
Jumbo filter housings for large capacity filtration requirements, including high flow.
Jumbo filter housings provide greater velocity, reducing the number of housings for high-flow applications. The housings are available in both 10” and 20” lengths with pressure relief.
Feature
- Available in 10” and 20” lengths
- Pressure release for easy cartridge replacement
- Double O-Ring seal that is leak proof
- Maximum operating pressure 85 PSI (5 BAR)
- Maximum operating temperature 100˚F (37˚C)
- Burst pressure over 500 PSI (30 BAR)
- Blue sumps with black caps and pressure release
- FNPT pipe threads
Options
| Part No. | Dimensions | Thread | Length | Initial PSI @ GPM | Colour |
|---|---|---|---|---|---|
|
FH 10BB075
|
13 1⁄8” x 7 1⁄4” (333 mm x 184 mm)
|
3⁄4” (19 mm) |
10” (254 mm)
|
2 PSI @ 15GPM (0.1 BAR @ 57 Lpm)
|
Blue
|
|
FH 20BB075
|
23 3⁄8” x 7 1⁄4” (594 mm x 184 mm)
|
3⁄4” (19 mm) |
20” (508 mm)
|
2 PSI @ 15GPM (0.1 BAR @ 57 Lpm)
|
Blue
|
